GB Cr12 | JIS SKD1 | DIN 1.2080 | ASTM D3 Cold Work Tool Steel

Port: Hu nan

Supply Ability: 10000 Ton/Tons per Year

Min.Order Quantity: 15 Tonne/Tonnes


  • Quick Details

    1: AISI D3 steel introduction
        AISI D3 cold work steel, also know as DIN 1.2080 (Werkstoff) and JIS SKD1, is a 12% chrome alloy steel. D3 cold work steelhas very high wear resistance against abrasive and adhesive wear due to the high volume of hard carbides in the steel matrix, medium toughness, dimensionally stable, high compressive strength, not secondary hardenable. Type AISI D3 cold works tool steel is oil-quenched; though small sections can be gas quenched after austenitization using vacuum. As a result, tools made with type D3 cold work tool steel tend to be brittle during hardening.
    2: AISI D3 Steel equivalent

    Country China Japan Germany USA UK
    Standard GB/T 1299 JIS G4404 DIN EN ISO4957 ASTM A681 BS 4659
    Grade Cr12 SKD1 1.2080/X210Cr12 D3

    3: AISI D3 steel chemical composition
    Grade C Mn P S Si Cr V T Mo
    D3 2.00 2.35 0.10 0.60 0.03 0.03 0.10 0.60 11.00 13.50 . . . 1.10 . . . 1.00 . . . . . .
    1.2080/X210Cr12 1.90 2.20 0.20 0.60

    0.10 0.60 11.00 13.00 - - - - - -
    SKD1 1.90 2.20 0.20 0.60 0.03 0.03 0.10 0.60 11.00 13.00 - - - - - -
    4: AISI D3 steel mechanical properties
        The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.

    5: AISI D3 steel overviews

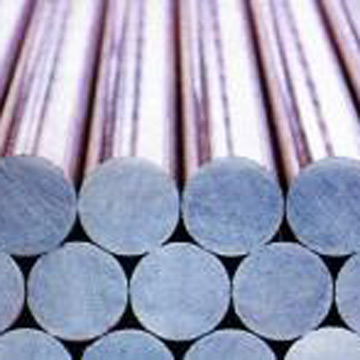

    Size Round Dia 6-1200mm
    Plate/Flat/Block Thickness
    Process EAF+LF+VD+Forged+Heat treatment(optional)
    Heat treatment Normalized ; Annealed ; Quenched ; Tempered
    Surface condition Black; Peeled; Polished; Machined; Grinded; Turned; Milled
    Delivery condition Forged; Hot rolled; Cold drawn
    Test Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
    Payment terms T/T;L/C;/Money gram/ Paypal
    Trade terms FOB; CIF; C&F; etc..
    Packing Standard Packages, or as Customers Request
    Delivery time 30-45 days
    Application  D3 is suitable for applications such as complex blanking and forming tools for long runs and for hard and abrasive materials.

    6: Delivery condition

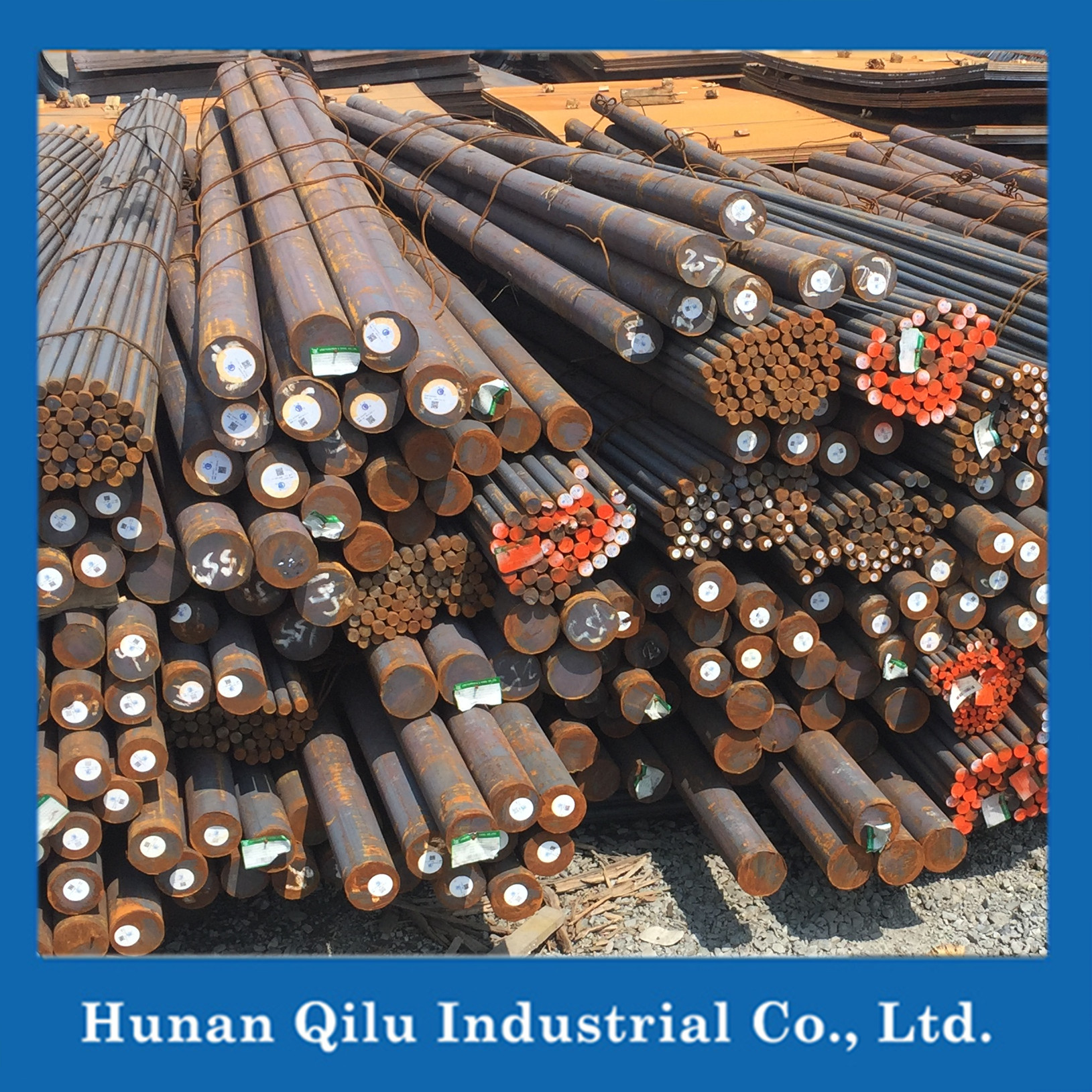

        For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.
        For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
        For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.

    7.Heat treatment

    Isothermal annealing:

    -   Heat to 800°Cand hold at temperature for 1/2 h to 1 h;

    -   Furnace cooling to 670°Cand hold at temperature for at least 10 hours;

    -   Cool by 10°C/h to 630°C;

    -   Cooling in air.

    Maximum hardness:≤240 HB

    Stress relieving:

        To be carried out after maching before the final heat treatment.

    -   Heat to 600-650°C, hold for 4-6 hours;

    -   Cooling in furnace to 300-350°C;

    -   Cooling in air


    -   Initial preheating to 350-450°C;

    -   Second preheating to 650-750°C;

    -   Heat to hardening temperature 860-890°Cand hold at temperature;

    -   Cooling in hot oil (40-60°C); oil quenched hardness: 54-59HRC;


        Tempering must be carried out within one hour from hardening(warm part) in the range 550-630°Cfor 4-6 hours according to hardness required, the dimensions of the parts and operating conditions.
