GB NM500 | DIN HB500 | SSAB HARDOX500 Wear-resisting Steel

Port: Hu nan

Supply Ability: 10000 Ton/Tons per Year 5,000MT/month

Min.Order Quantity: 1 Ton/Tons 20MT


  • Quick Details

    1: SSAR HARDOX500 steel introduction

            The HARDOX 500 is a flexible and welded wear plate for applications where wear resistance is more demanding. It is also a wear-resistant steel plate with an average hardness of 550 HBW, which is used in high wear situations. It is intended primarily for users and manufacturers using high manganese steel castings or 500 Brinell hardness wear resistant steel plates when upgrading from HARDOX 500 steel plates to this product. The Brinell hardness is increased by 50 units and the wear life is prolonged without loss of the toughness of the steel plate.

    2: SSAR HARDOX500 steel equivalent

    Country China Japan Germany USA Sweden
    Standard GB JIS DIN (W-Nr.)


    Grade NM500

    3: SSAR HARDOX500 steel chemical composition

    Grade C Si Mn P S Ti Mo N     B
    HARDOX500 0.29 0.70 1.60 0.025 0.010 / 0.60 / 0.004
    HB500 0.24-0.34 0.20-0.40 1.20-1.60 0.015 0.01 0.1 0.10-0.30 0.005 0.001-0.005

    4: SSAR HARDOX500 steel mechanical properties

        The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.

    5: SSAR HARDOX500 steel overviews

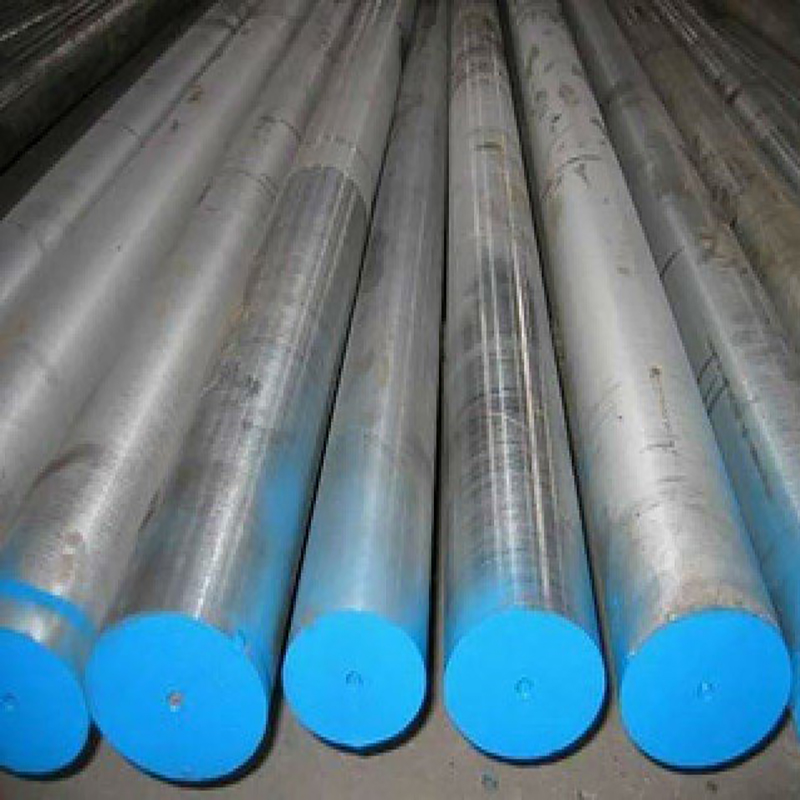

    Size Round Dia 6-1200mm
    Plate/Flat/Block Thickness
    Heat treatment Normalized ; Annealed ; Quenched ; Tempered
    Surface condition Black; Peeled; Polished; Machined; Grinded; Turned; Milled
    Delivery condition Forged; Hot rolled; Cold drawn
    Test Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
    Payment terms T/T;L/C;/Money gram/ Paypal
    Trade terms FOB; CIF; C&F; etc..
    Delivery time 30-45 days
    Application  HARDOX 500 is used for crusher, screen plate, feeder, hopper, elevator, blade plate, conveyor, bucket, blade plate, gear, sprocket, etc.

    7: Delivery condition
        For hot forged  bar, usually the delivery condition is hot forged, annealed/QT, rough turned/Black surface.
        For hot rolled bar, usually the delivery condition is hot rolled, annealed/QT, Black surface.
        For hot forged block, usually the delivery condition is hot forged, annealed/QT, milled surface/Black surface
        For hot rolled plate, usually the delivery condition is hot rolled, annealed/QT, black surface.
        For cold drawn bar, usually the delivery condition is cold drawn, annealed/QT, peeled/black surface
