GB 5CrNiMo | JIS SKT4 | DIN 1.2713 | BS BH224/5 | ASTM L6 Cold Work Tool Steel

Port: Hu nan

engineering steel, cold work tool steel, hot work tool steel, plastic mold steel, spring steel, high speed steel, stainless steel

Alloy Structural Steel, Alloy Tool Steel, Carbon Structural Steel, Carbon Tool Steel, Bearing Steel, Spring Steel ,Stainless Steel, Refractory Steel, Roll Steel, Pinion Steel. Additionally, the company also has the capacity to forge round steel, steel flat, square steel, module, shaft and roller


  • Quick Details

    1: ASTM L6 steel introduction

        In ASTM A681 standard, L6 steel grade is in L-type for special purpose tool steels. AISI L6 tool steel is in the general class of alloy, oil-hardening tool steel that is characterized by good toughness. ASTM L6 tool steel is suitable for use as tools, dies, and machine parts, which require a good combination of hardness and toughness.

        Due to its lower carbon content and relatively high nickel content, L6 tool steel has slightly better shock-resistance than more highly alloyed types and should be used where some wear-resistance can be sacrificed for increased toughness.

    2: ASTM L6 Steel equivalent
    Country China Japan Germany USA UK
    Standard GB/T 1299 JIS G4404 DIN EN ISO4957 ASTM A681 BS 4659
    Grade 5CrNiMo SKT4 1.2713 L6/T61206 BH224/5

    3: ASTM L6 steel chemical composition
    ASTM A681 C Mn P S Si Cr V Mo Ni
    L6/T61206 0.65 0.75 0.25 0.80 0.03 0.03 0.10 0.50 0.60 1.20 . . . . . . . . . 0.50 1.25 2.00
    0.50 0.60 0.60 0.90 0.03 0.02 0.10 0.40 0.80 1.20 0.05 0.15 0.35 0.55 1.50 1.80
    SKT4 0.50 0.60 0.60 0.90 0.03 0.02 0.10 0.40 0.80 1.20 0.05 0.15 0.35 0.55 1.50 1.80
    BH224/5 0.49 0.57 0.70 1.00 0.03 0.025 . . . 0.35 0.70 1.10 . . . . . . 0.25 0.40 1.25 1.80

    4: ASTM L6 steel mechanical properties

        The mechanical properties mainly include tensile strength, yield strength, elongation, area or reduction, hardness, impact value, non-metalic inclusion etc. Different heat treatment, the mechanical properties will be different, such as normalized, tempered, QT. If you want to know the properties, kindly contact the salesman.


    5: ASTM L6 steel overviews

    Size Round Dia 6-1200mm
    Plate/Flat/Block Thickness
    Process EAF+LF+VD+Forged+Heat treatment(optional)
    Heat treatment Normalized ; Annealed ; Quenched ; Tempered
    Surface condition Black; Peeled; Polished; Machined; Grinded; Turned; Milled
    Delivery condition Forged; Hot rolled; Cold drawn
    Test Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
    Payment terms T/T;L/C;/Money gram/ Paypal
    Trade terms FOB; CIF; C&F; etc..
    Packing Standard Packages, or as Customers Request
    Delivery time 30-45 days
    Application  ASTM L6 tool steel is for general purpose tools and dies where greater toughness is required, but with some sacrifice of abrasion-resistance.Typically applications are, spindles, forming rolls, punches, blanking and forming dies, trimmer dies, clutch parts, pawls, bearings, chucks parts, rollers, knuckle pins, clutch pins, shear blades.

    6. AISI L6 Tool Steel Heat Treatment


        Preheating: Heat steel L6 at a rate not exceeding 204°C (400°F) per hour (222°C per hour) to 621-677°C (1150-1250°F) and equalize. Soak for 30 minutes for the first inch (25.4 mm) of thickness, plus 15 minutes for each additional inch (25.4 mm).


        Quench L6 tool steel in oil to 66-51°C (150-125°F).


        Temper L6 steels immediately after quenching. Hold at temperature for 1 hour per inch (25.4 mm) of thickness when tempering at 204°C (400°F), 4 hours minimum, then air cool to ambient temperature.
        However, where increased toughness is desired, at a sacrifice of some hardness, higher tempering temperatures are often used.

    AISI L6 steel does not become brittle, as many other die steels do, when tempered in the range of 232°C to 426°C (450 to 800°F).

        To minimize the possibility of cracking, the steel should be tempered immediately after hardening and should be heated slowly to the desired tempering temperature.


        Annealing of steel L6 must be performed after hot working and before re-hardening.

        Heat to 760°C (1400°F) and hold one hour per inch of maximum thickness. Then cool slowly with the furnace at a rate not exceeding 28°C per hour(50°F per hour) to 538°C (1000°F). Continue cooling to ambient temperature in the furnace or in air.

        For improved machinability, hold at 760°C (1400°F) for 1 hour per inch (25.4mm) of maximum thickness; 2 hours minimum. Then cool slowly with the furnace cool from 677°C (1250°F) to 760°C (1400°F), hold for 8 hours, then air cool to ambient temperature.

        Because of its air-hardening ability, steel L6 should not be normalized.

    7: Delivery condition

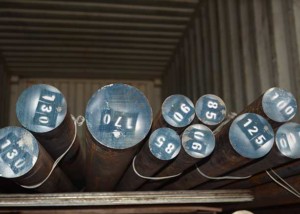

        For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.

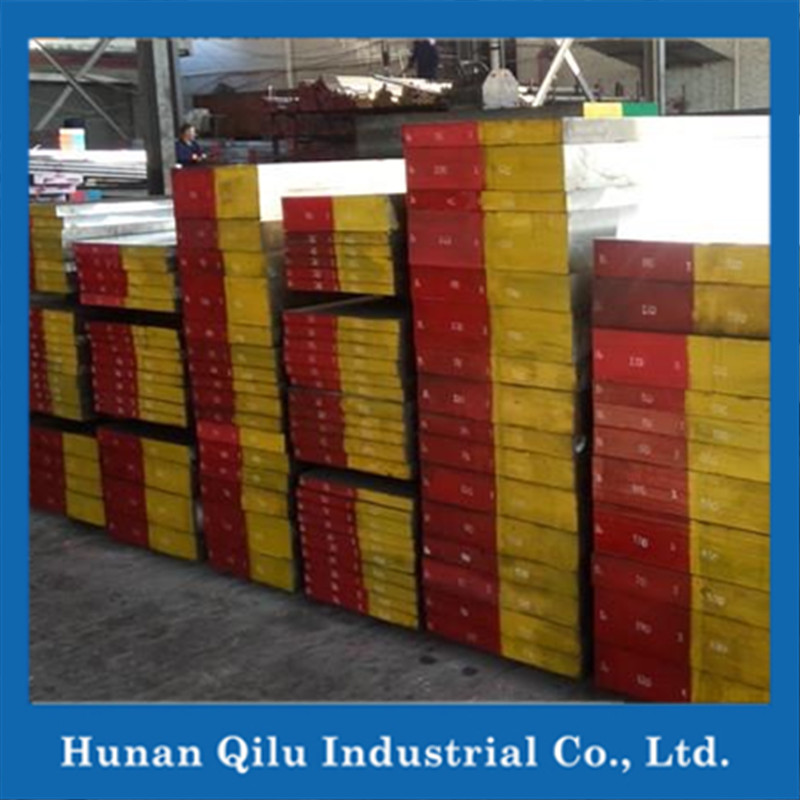

        For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.

        For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.
