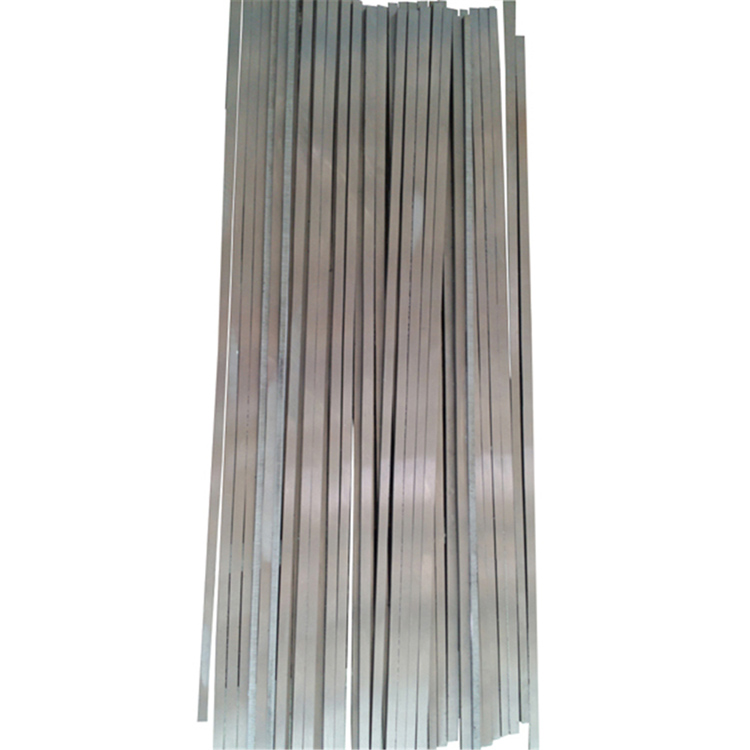

Tool Steel O1 Ground Flat Stock
Port: Hu nan
Supply Ability: 20000 Piece/Pieces per Week
Min.Order Quantity:1 Piece/Pieces
Your present location:Home > Products > Machining Products
-
Quick Details
Hardness: 140-220HB
Packaging & Delivery
Packaging Details:Antirust oil painted---Wrapped with cover film---Packed with cardboard box.
Delivery Detail:30-50days
Specifications
Ground Flat Stock also know as gauge plate,is an oil hardening carbon manganese tool steel supplied in its annealed condition.
Introduction
Ground Flat Stock also know as gauge plate,is an oil hardening carbon manganese tool steel supplied in its annealed condition. Precision ground to size on both width and thickness dimensions to a close tolerance. This Material is capable of reaching high hardness levels with excellent dimensional stability. This gives the product great versatility to a whole range of engineering applications.
Applications
Press Tools, Broaches, Clipping, Marking Punches, Gauges, Jigs, Deep Drawing Dies, Slitting Cutters, Taps & Screwing Tools
Chemical Component(Heat Analysis)%Grade C Si Mn P S Cr W V AISI O1 0.85-1.00 0.10-0.50 1.00-1.40 ≤0.030 ≤0.030 0.40-0.70 0.40-0.60 ≤0.30 DIN 1.2510 0.90-1.05 0.15-0.35 1.00-1.20 ≤0.030 ≤0.030 0.50-0.70 0.50-0.70 0.05-0.15 Hardness:≤230HB
Tolerance
Metric Sizes Imperial Sizes 500mm lengths Thickness +0.05mm/-0mm Width +0.2mm/-0mm Length +5mm/-0mm Flatness is within 0.1mm Thickness +0.002''/-0'' Width +0.008''/-0'' Length +0.197''/-0'' Flatness is within 0.004'' 1000mm lengths Thickness +0.05mm/-0mm Width +0.2mm/-0mm Length +5mm/-0mm Thickness +0.002''/-0'' Width +0.008''/-0'' Length +0.197''/-0''
Packing

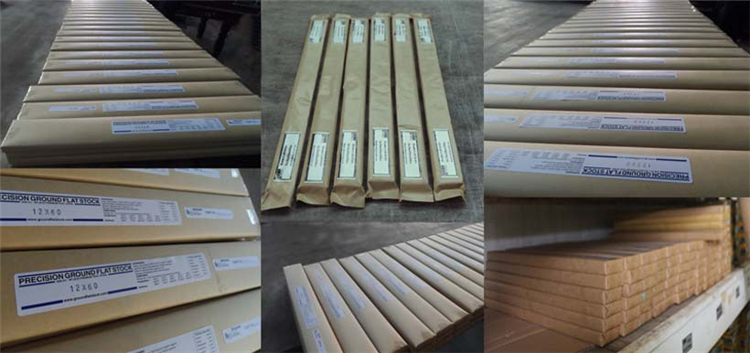

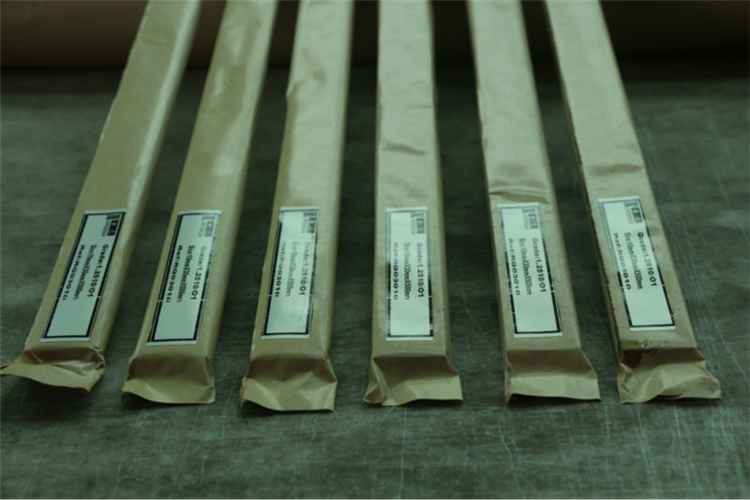

Antirust oil painted→Wrapped with cover film→Packed with cardboard box.

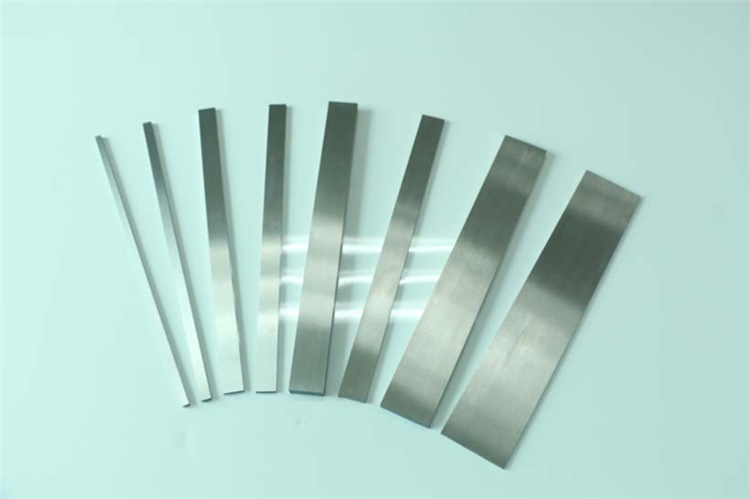

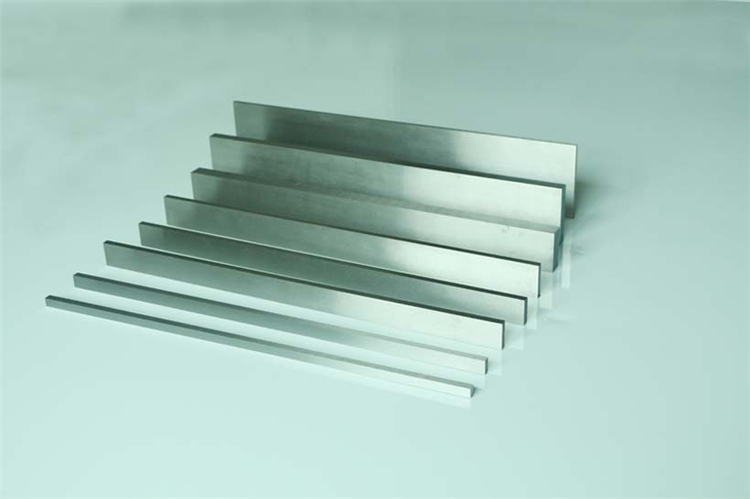

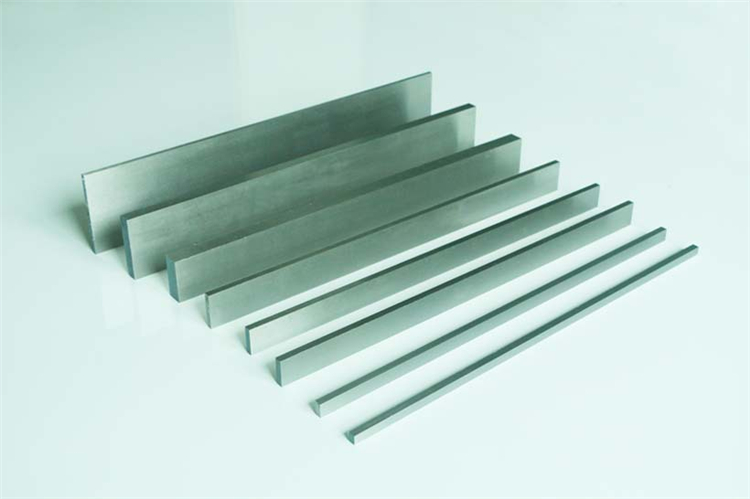

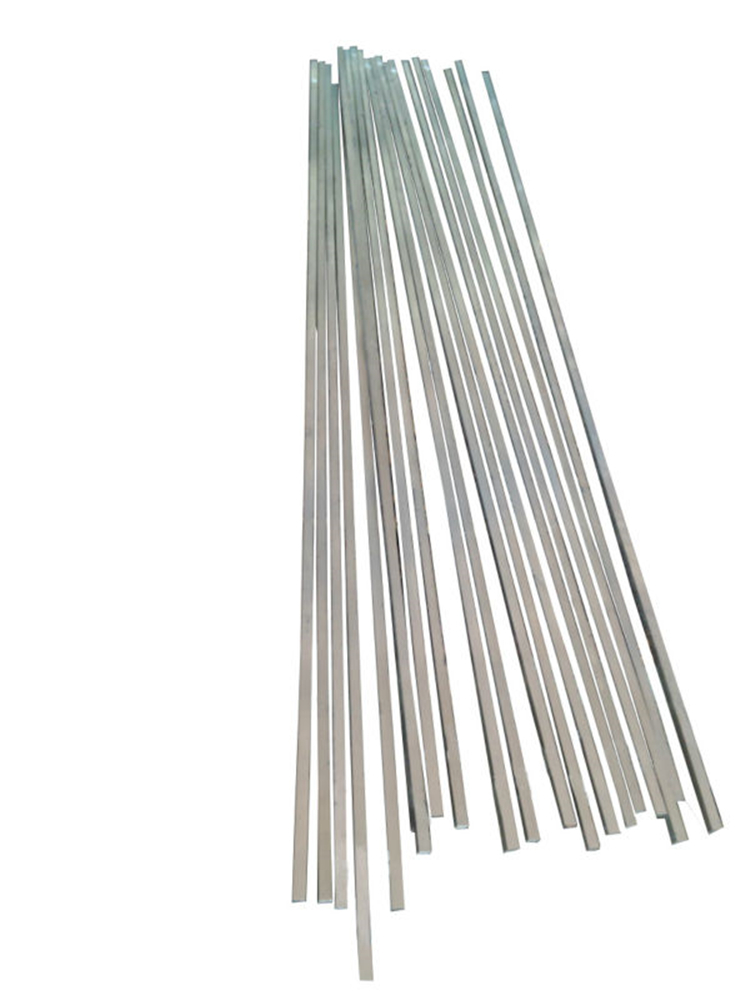

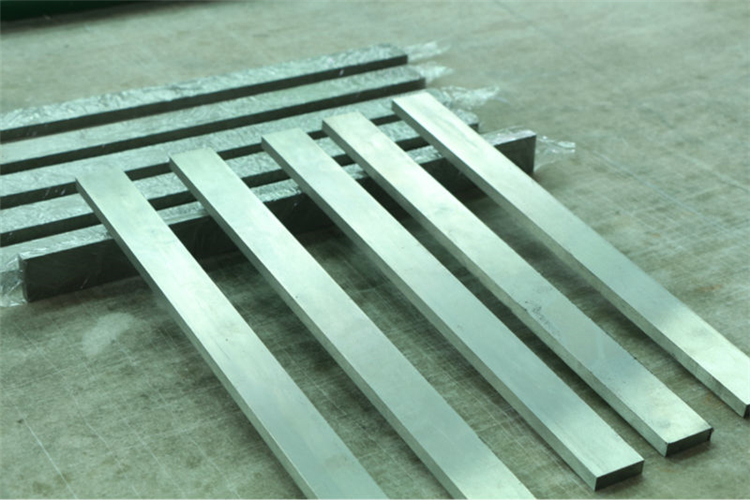

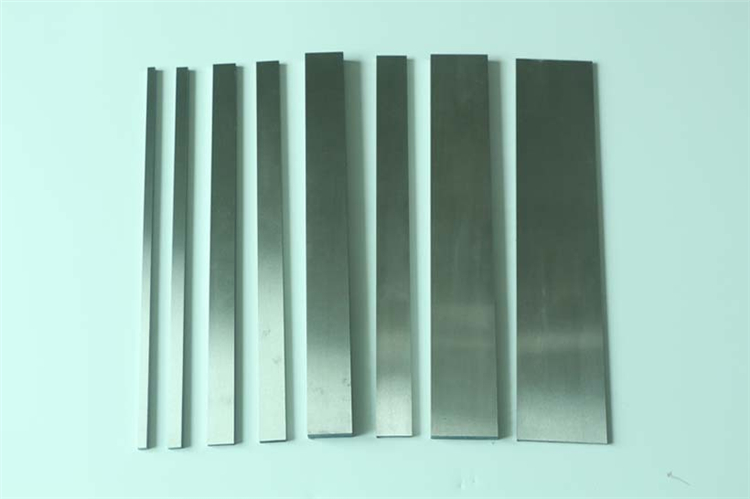

Regulaer SizeW (mmT(mm) 5 6 8 10 12 15 20 25 30 35 40 50 10 √ √ √ √ √ √ √ √ √ √ √ √ 12 √ √ √ √ √ √ √ √ √ √ √ √ 15 √ √ √ √ √ √ √ √ √ √ √ √ 20 √ √ √ √ √ √ √ √ √ √ √ √ 25 √ √ √ √ √ √ √ √ √ √ √ √ 30 √ √ √ √ √ √ √ √ √ √ √ √ 40 √ √ √ √ √ √ √ √ √ √ √ √ 50 √ √ √ √ √ √ √ √ √ √ √ √ 60 √ √ √ √ √ √ √ √ √ √ √ √ 70 √ √ √ √ √ √ √ √ √ √ √ √ 75 √ √ √ √ √ √ √ √ √ √ √ √ 80 √ √ √ √ √ √ √ √ √ √ √ √ 100 √ √ √ √ √ √ √ √ √ √ √ √ 125 √ √ √ √ √ √ √ √ √ √ √ √ 150 √ √ √ √ √ √ √ √ √ √ √ √ 200 √ √ √ √ √ √ √ √ √ √ √ √ 250 √ √ √ √ √ √ √ √ √ √ √ √ 300 √ √ √ √ √ √ √ √ √ √ √ √ Products details:
