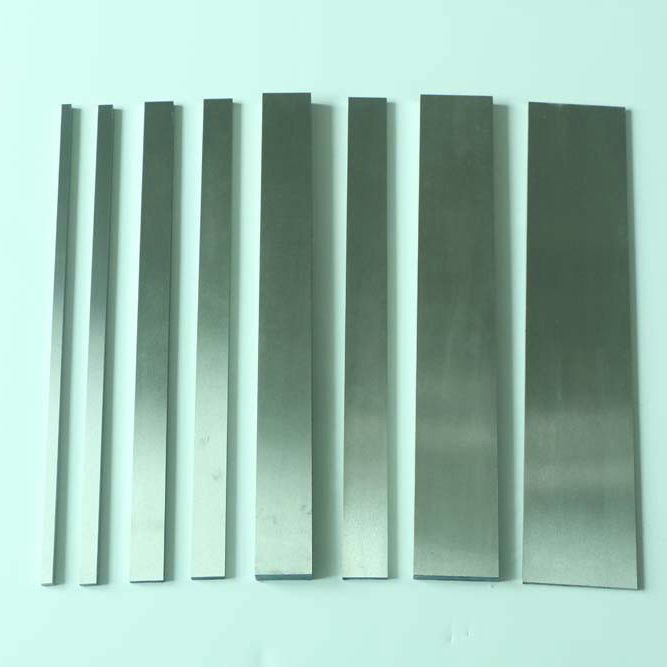

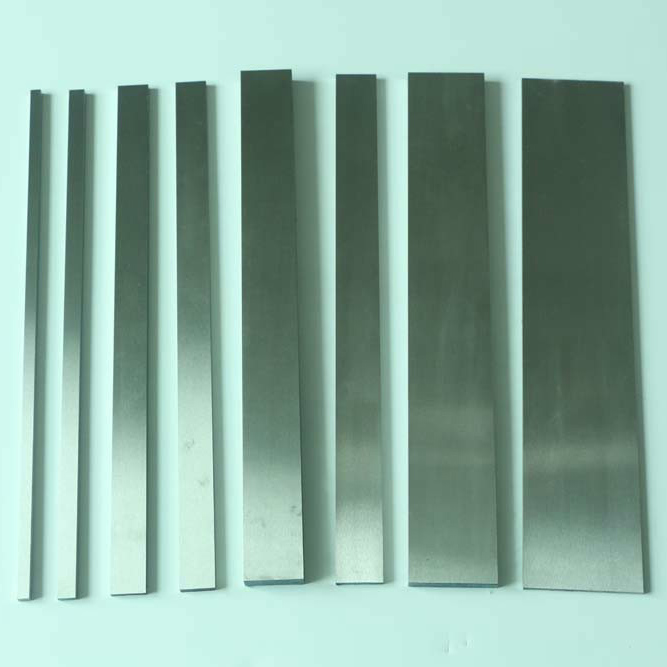

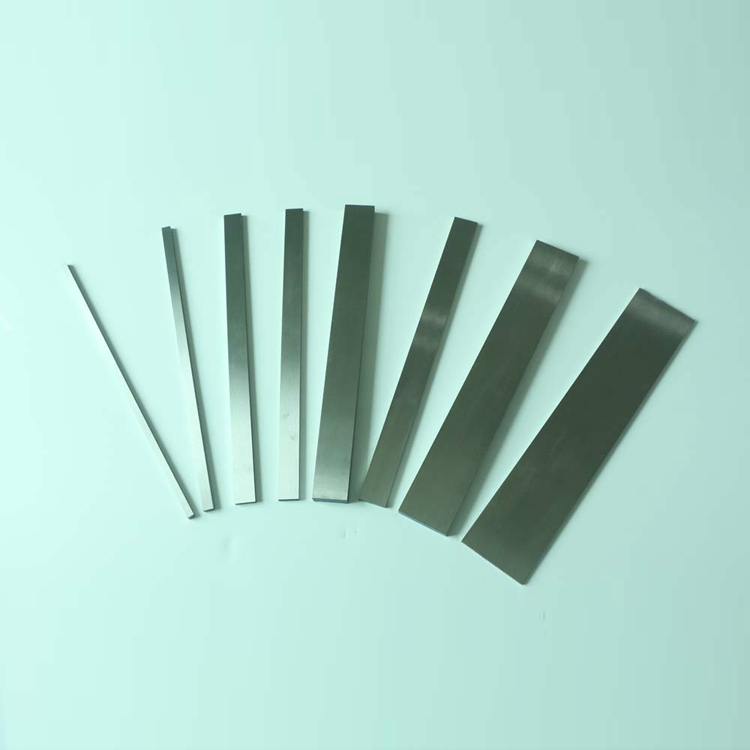

Ground Flat Stock
Port: Hu nan
Supply Ability: 100000 Piece/Pieces per Month
Min.Order Quantity: 1 Piece/Pieces
Your present location:Home > Products > Machining Products
-
Quick Details
Standard: AISI, ASTM, BS, DIN, JIS, customized, GB
Grade: O1/D2/H13;1.2510/1.2379/1.2344
Dimensions: Various
Application: tool steel
Alloy Or Not: Is Alloy
Shape: flat
Packaging & Delivery
Packaging Details: Antirust oil painted-Wrapped with polycoated krapt paper-Packed with wooden box
Delivery Detail: within 30 days
Raw Material:All the raw materials is from First Class National Mill in China such as Dongbei Fushun Mill
Chemical Component(Heat Analysis)%
Grade C Si Mn P S Cr V Mo W AISI O1 0.85-0.95 0.20-0.40 1.00-1.30 ≤0.030 ≤0.030 0.40-0.60 ≤0.20 0.40-0.60 AISI A2 0.95-1.05 0.20-0.40 0.45-0.75 ≤0.030 ≤0.030 4.75-5.50 0.4 0.90-1.40 AISI D2 1.40~1.60 0.30-0.50 0.30-0.50 ≤0.030 ≤0.030 11.00~13.00 0.8 0.70-1.20 AISI H13 0.30-0.40 0.80-1.20 0.20-0.40 ≤0.030 ≤0.030 4.75-5.50 0.80-1.20 1.25-1.75
Tolerances:
Ground Flat Stock
Metric Sizes Imperial Sizes( Regular) Imperial Sizes(Oversize) Thickness +0.05mm/0.00mm
Width +0.2mm/0.00mm
Length 500mm=+5mm/0.00mm;
1000mm=+10mm/0.00mm
Flatness is aim to 0.25mm/1000mm
Thickness ±0.001''
Width+0.005" to 0.000"
Length 18" = + 1/4", 36" = + 1/2"
Flatness is aim to 0.00025''/per inch
0.003" per inch;
End 0.004" per inch
Thickness:0.010 to 0.015"
Width:0.010 to 0.015"
Length:18" = + 1/4", 36" = + 1/2"
Flatness is aim to 0.00025''/per inch
Squareness:Edge 0.003" per inch;
End 0.004" per inch
In adddition to regulaer size,Neworigin could provide any other grades and sizes according to customer's needs.
