1.2379 Good quality Ground Flat Stock
Port: Hu nan
Supply Ability: 100000 Piece/Pieces per Week
Min.Order Quantity: 1 Piece/Pieces
Your present location:Home > Products > Machining Products
-
Quick Details
Standard: AISI, ASTM, BS, DIN, JIS, customized, GB Grade: D2,1.2379 Dimensions: Various Application: tool steel Alloy Or Not: Is Alloy Shape: flat
Packaging & Delivery

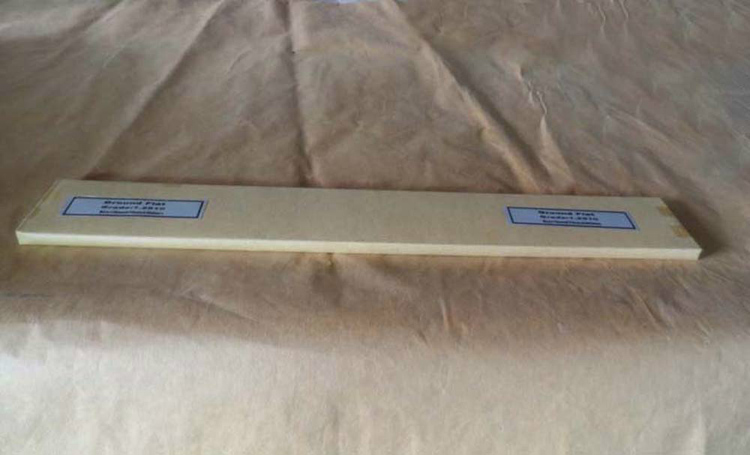

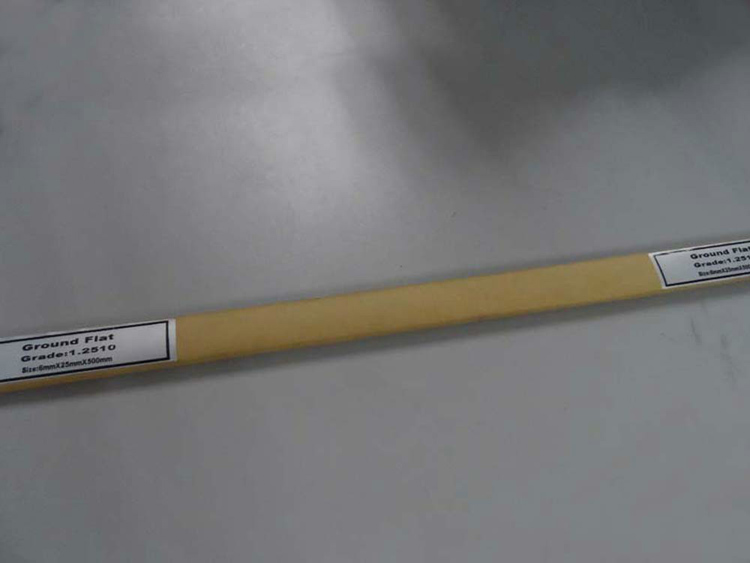

Packaging Details: Antirust oil painted---Wrapped with cover film---Packed with cardboard box.
Delivery Detail: within 30 days
Raw Material
All the raw materials is from First Class National Mill in China such as Dongbei Fushun Mill
Chemical Component(Heat Analysis)%
Raw Material
All the raw materials is from First Class National Mill in China such as Dongbei Fushun Mill
Chemical Component(Heat Analysis)%
Grade C Si Mn P S Cr Mo V DIN 1.2379 1.50~1.60 0.10~0.40 0.15~0.45 ≤0.030 ≤0.030 11.00~12.00 0.60~0.80 0.90~1.10 AISI D2 1.40~1.60 0.10~0.60 0.20~0.60 ≤0.030 ≤0.030 11.00~13.00 0.70~1.20 0.50~1.10 Tolerance
Thickness Width Length Metric Sizes +0.05mm/-0mm +0.2mm/-0mm +5mm/-0mm Imperial Sizes +0.002''/-0'' +0.008''/-0'' +0.197''/-0'' In adddition to regulaer size,Neworigin could provide any other grades and sizes according to customer's needs.
AISI D2/DIN 1.2379 Length:500mm W (mmT(mm) 10.4 12.4 15.4 20.4 25.4 30.4 40.4 50.4 60.4 70.4 80.4 90.4 100.4 10.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 12.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 15.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 20.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 25.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 30.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 40.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 50.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 60.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 70.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 75.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 80.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 100.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 125.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 150.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 200.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 250.3 √ √ √ √ √ √ √ √ √ √ √ √ √ 300.3 √ √ √ √ √ √ √ √ √ √ √ √ √ Products details:
