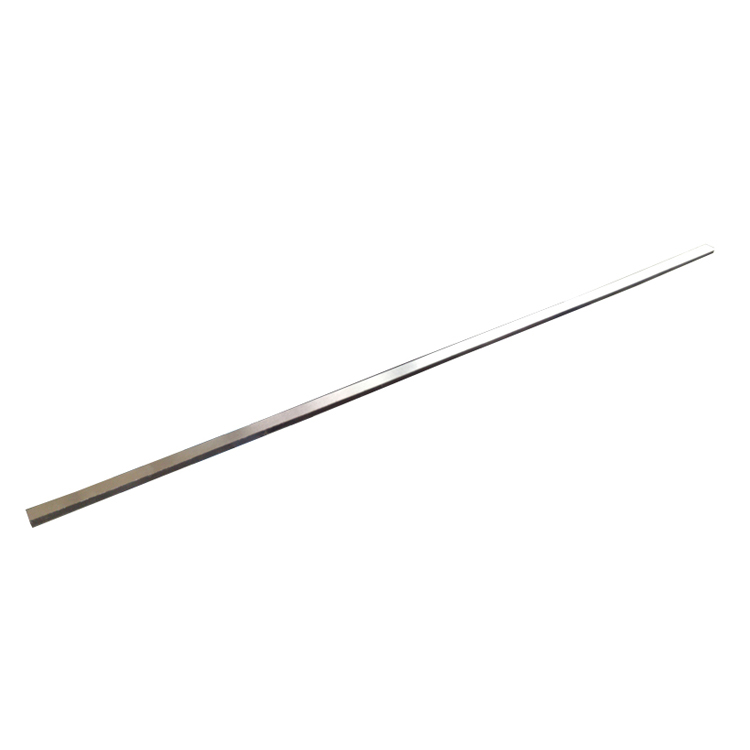

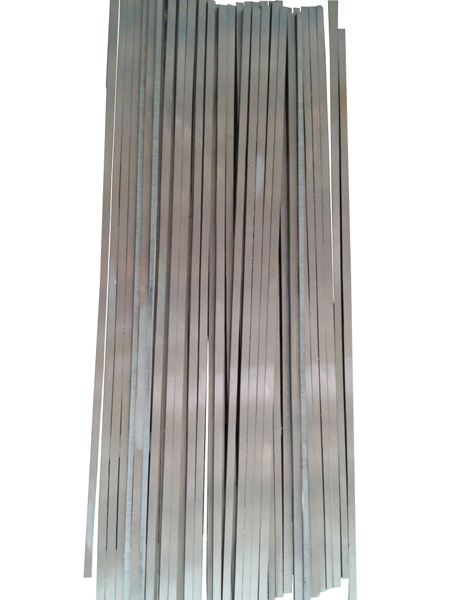

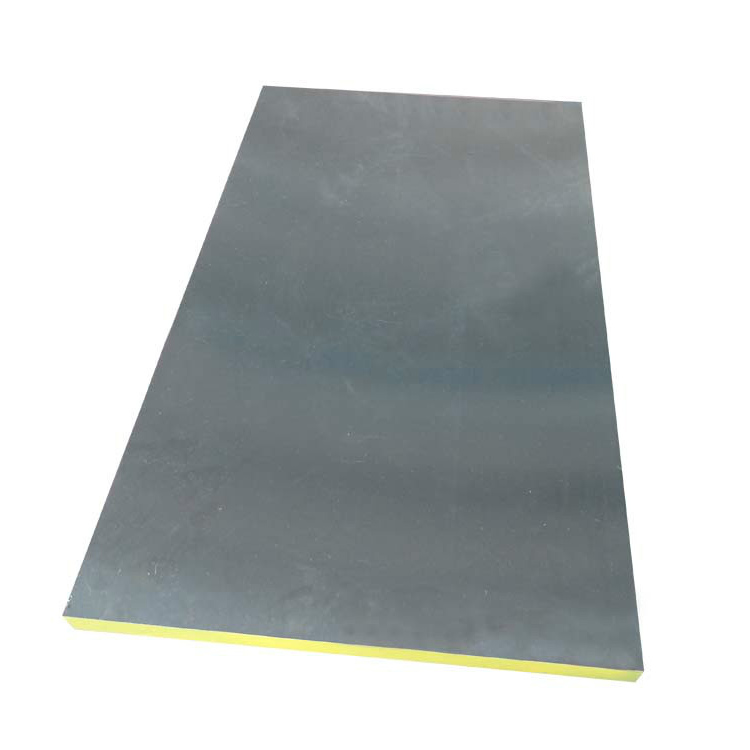

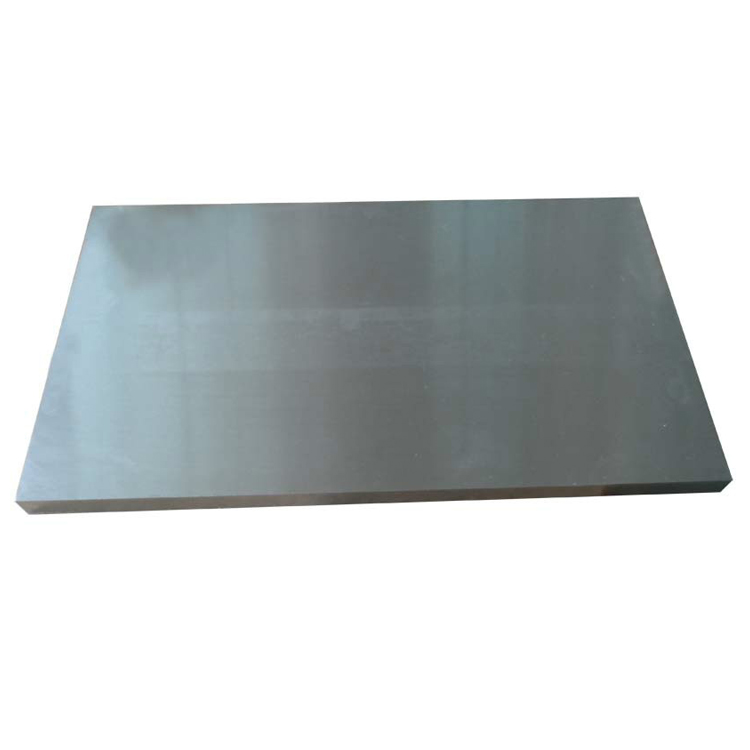

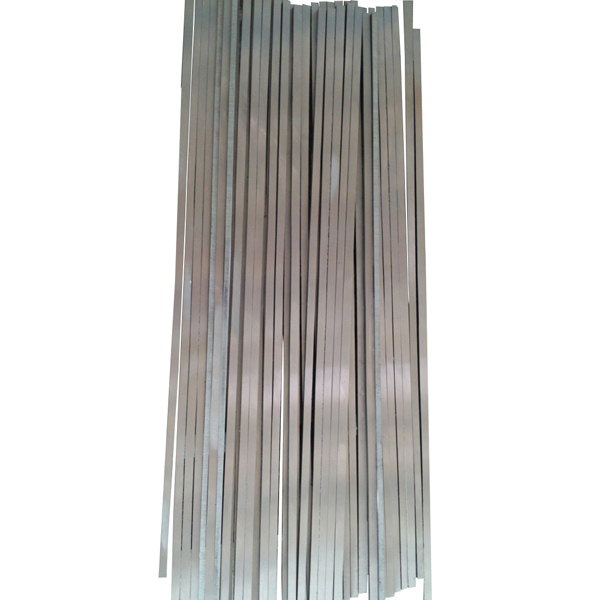

O1 Competitive Price Ground Flat Stock
Port: Hu nan
Supply Ability: 100000 Piece/Pieces per Week
Min.Order Quantity: 1 Piece/Pieces
Your present location:Home > Products > Machining Products
-
Quick Details
Standard: AISI, ASTM, BS, DIN, GB, JIS, customized Dimensions: Various Grade: O1,1.2510 Application: tool steel Shape: flat Alloy Or Not: Is Alloy
Packaging & Delivery
Packaging Details: Antirust oil painted---Wrapped with cover film---Packed with cardboard box.
Delivery Detail: within 30 days
Specifications
This Material is capable of reachin Press Tools, Broaches, Clipping, Marking Punches, Gauges, Jigs, Deep Drawing Dies, Slitting
Raw Material
All the raw materials is from First Class National Mill in China such as Dongbei Fushun Mill
Chemical Component(Heat Analysis)%
Grade C Si Mn P S Cr W V AISI O1 0.85-1.00 0.10-0.50 1.00-1.40 ≤0.030 ≤0.030 0.40-0.70 0.40-0.60 ≤0.30 DIN 1.2510 0.90-1.05 0.15-0.35 1.00-1.20 ≤0.030 ≤0.030 0.50-0.70 0.50-0.70 0.05-0.15 Tolerance
Thickness Width Length Metric Sizes +0.05mm/-0mm +0.2mm/-0mm +5mm/-0mm Imperial Sizes +0.002''/-0'' +0.008''/-0'' +0.197''/-0'' In adddition to regulaer size,Neworigin could provide any other grades and sizes according to customer's needs. Steel Grade:AISI O1/DIN 1.2510 Length:1000mm W(mm) T(mm) 8 10 12 15 20 25 35 45 50 8 √ √ √ √ √ √ √ √ √ 12 √ √ √ √ √ √ √ √ √ 15 √ √ √ √ √ √ √ √ √ 20 √ √ √ √ √ √ √ √ √ 25 √ √ √ √ √ √ √ √ √ 30 √ √ √ √ √ √ √ √ √ 40 √ √ √ √ √ √ √ √ √ 50 √ √ √ √ √ √ √ √ √ 60 √ √ √ √ √ √ √ √ √ 70 √ √ √ √ √ √ √ √ √ 75 √ √ √ √ √ √ √ √ √ 80 √ √ √ √ √ √ √ √ √ 100 √ √ √ √ √ √ √ √ √ 125 √ √ √ √ √ √ √ √ √ 150 √ √ √ √ √ √ √ √ √ 200 √ √ √ √ √ √ √ √ √ 250 √ √ √ √ √ √ √ √ √ 300 √ √ √ √ √ √ √ √ √ Products details:
